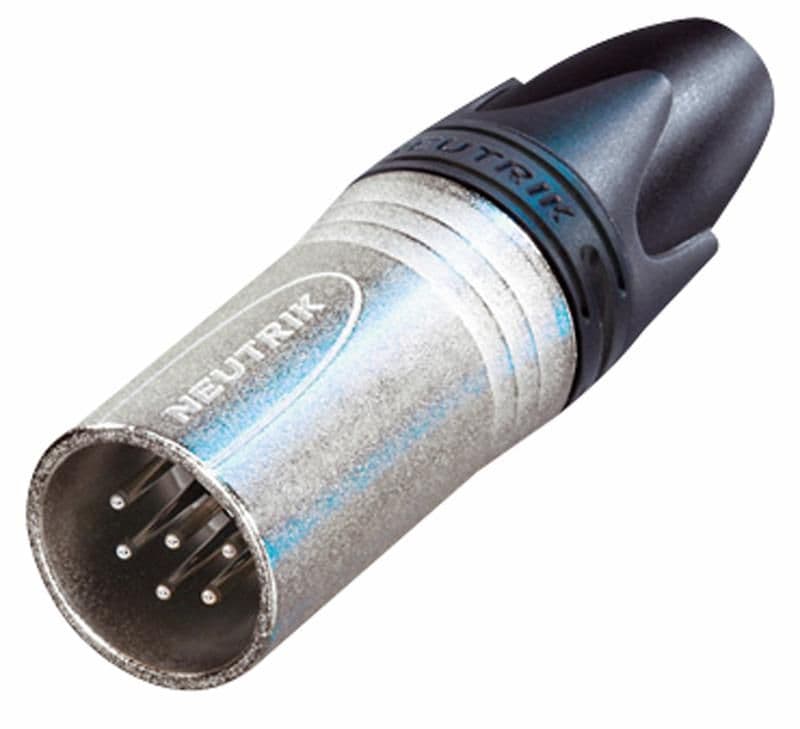

Neutrik NC5MXX 5 Pin Male XLR Cable Connector – Nickel

The Neutrik NC5MXX is a professional quality 5 pin male XLR cable connector from the Neutrik XX Series, designed to provide reliable connections for audio and other professional equipment.

Featuring a rugged nickel plated zinc diecast housing and silver plated contacts, the NC5MXX offers excellent durability and dependable electrical performance. Its improved metal latch locking mechanism ensures a secure connection, while the chuck-type strain relief provides a firm grip on the cable, helping to prevent damage from pulling and repeated use.

The connector also features a flexible polyurethane boot that protects the cable against bending stresses. Its ergonomic design and improved internal construction make assembly and soldering straightforward, making it suitable for professional installations, cable assembly and repairs.

Key Features

• Genuine Neutrik NC5MXX 5 pin male XLR cable connector
• Professional XX Series design with nickel-plated metal housing
• Silver-plated brass contacts for reliable signal transmission
• Secure metal latch locking mechanism
• Improved chuck-type strain relief for greater cable retention
• Flexible polyurethane boot helps protect against cable bending
• Rugged zinc diecast shell for long term durability

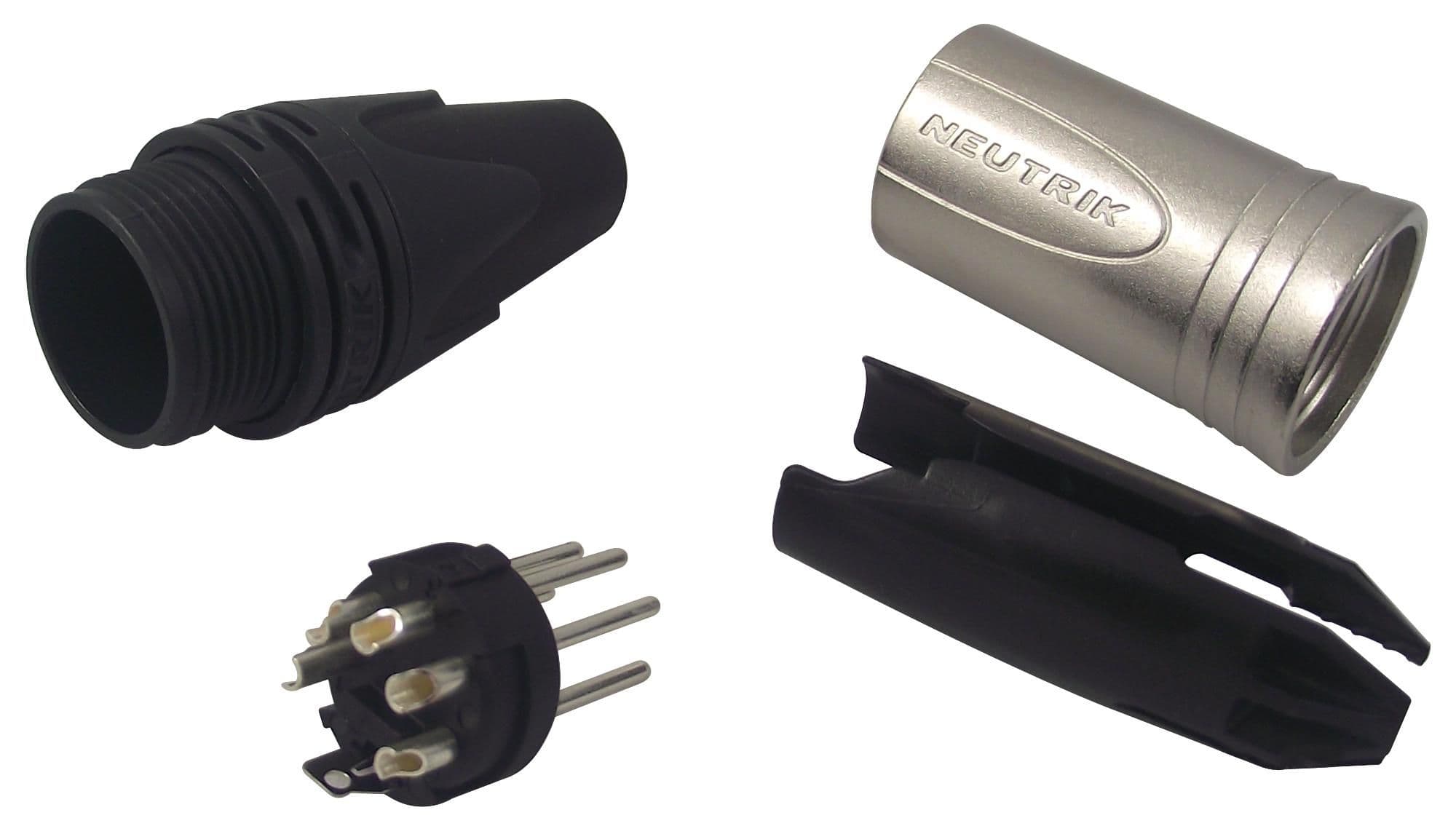

• Improved housing design for easier assembly
• Suitable for professional audio, lighting control and other compatible 5 pin XLR applications
• Cable-mount design with solder terminals

Technical Specifications

• Manufacturer: Neutrik
• Part Number: NC5MXX
• Connector Type: 5 Pin Male XLR
• Connector Mounting: Cable Mount
• Contact Material: Brass
• Contact Plating: Silver over Nickel
• Housing Material: Nickel Plated Zinc Die-Cast
• Insert Material: Polyamide
• Strain Relief: POM Chuck Type
• Boot Material: Polyurethane
• Rated Current: 7.5A per contact
• Rated Voltage: Less than 50V
• Contact Resistance: ≤3mΩ
• Insulation Resistance: Greater than 10GΩ
• Protection Rating: IP40
• Flammability Rating: UL94HB
• Operating Temperature: -30°C to +80°C
• Compliance: IEC 61076-2-103

Please Note: This is a cable supplied for fitting to suitable cable. Soldering is required.
