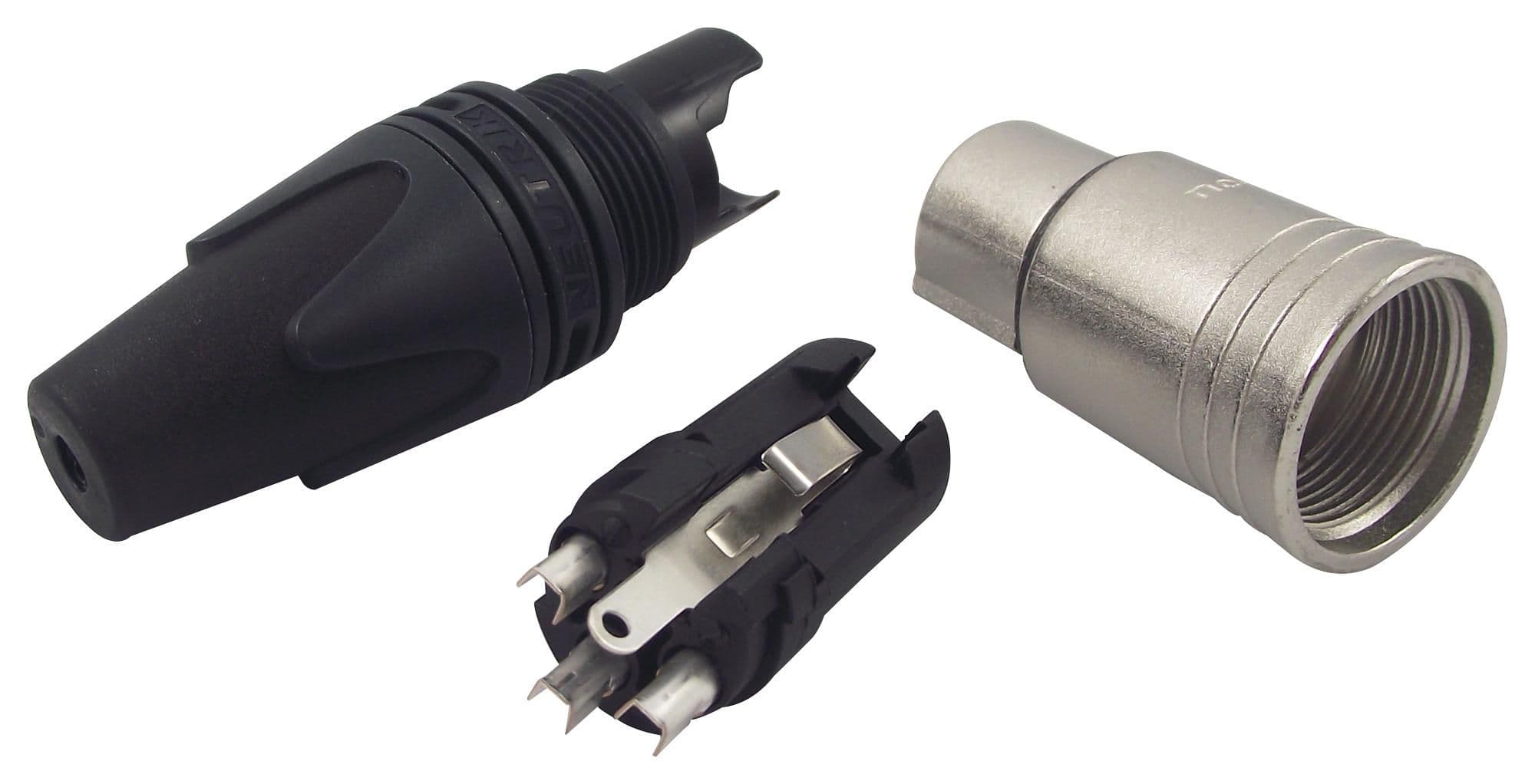

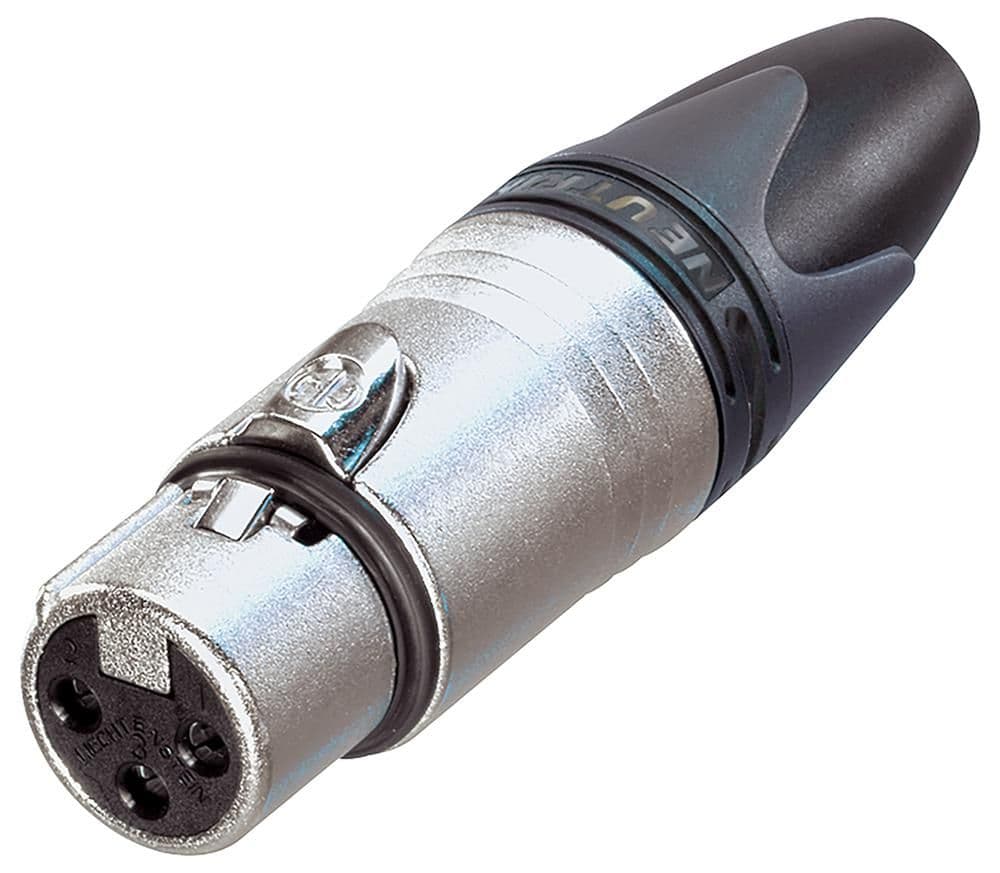

Neutrik NC3FXX 3 Pin Female XLR Cable Socket – XX Series

The Neutrik NC3FXX is a high quality 3 pin female XLR cable connector from the professional XX Series. Designed for reliable audio connections, it features a rugged metal housing, improved locking mechanism and secure cable strain relief for long lasting performance.

Ideal for making up or repairing microphone leads, balanced audio cables and professional sound equipment connections. The NC3FXX is compatible with Van Damme microphone cable and other suitable balanced audio cables, making it an excellent choice for studio, stage and installation use.

The specially designed female contacts provide low contact resistance and reliable signal transmission, while an integrated solder barrier prevents solder from entering the contact mating area during assembly.

The improved metal latch provides a secure connection and is easy to release, while the chuck-type strain relief grips the cable firmly. A flexible polyurethane boot also helps protect against damage caused by repeated cable bending.

This connector is the ideal companion to the Neutrik NC3MXX male XLR plug when making complete microphone or balanced audio leads.

Features:

• Genuine Neutrik NC3FXX 3 pin female XLR cable connector
• Professional XX Series design
• Compatible with Van Damme microphone cable
• Ideal for microphone leads and balanced audio connections
• Specially designed female contacts for low contact resistance
• Integrated solder barrier protects the contact mating area
• Improved solid metal locking latch for secure connections
• Additional ground spring contacts for improved shell grounding
• Rugged zinc diecast housing for durability
• Chuck-type strain relief for excellent cable retention
• Flexible polyurethane boot protects against cable bending
• Ergonomic design for easy handling and assembly
• Compatible with optional coloured identification rings and boots

Technical Specifications:

• Manufacturer: Neutrik
• Part Number: NC3FXX
• Connector Type: 3 Pin Female XLR Cable Socket
• Series: XX
• Housing Material: Zinc diecast
• Termination: Solder
• Cable Diameter: 3.5mm–8mm (standard chuck)
• Contact Resistance: ≤ 3 mΩ
• Operating Temperature: -30°C to +80°C
• Protection Rating: IP40

Please Note: This is a solder termination connector and requires assembly. Check cable diameter and wiring suitability before installation.
