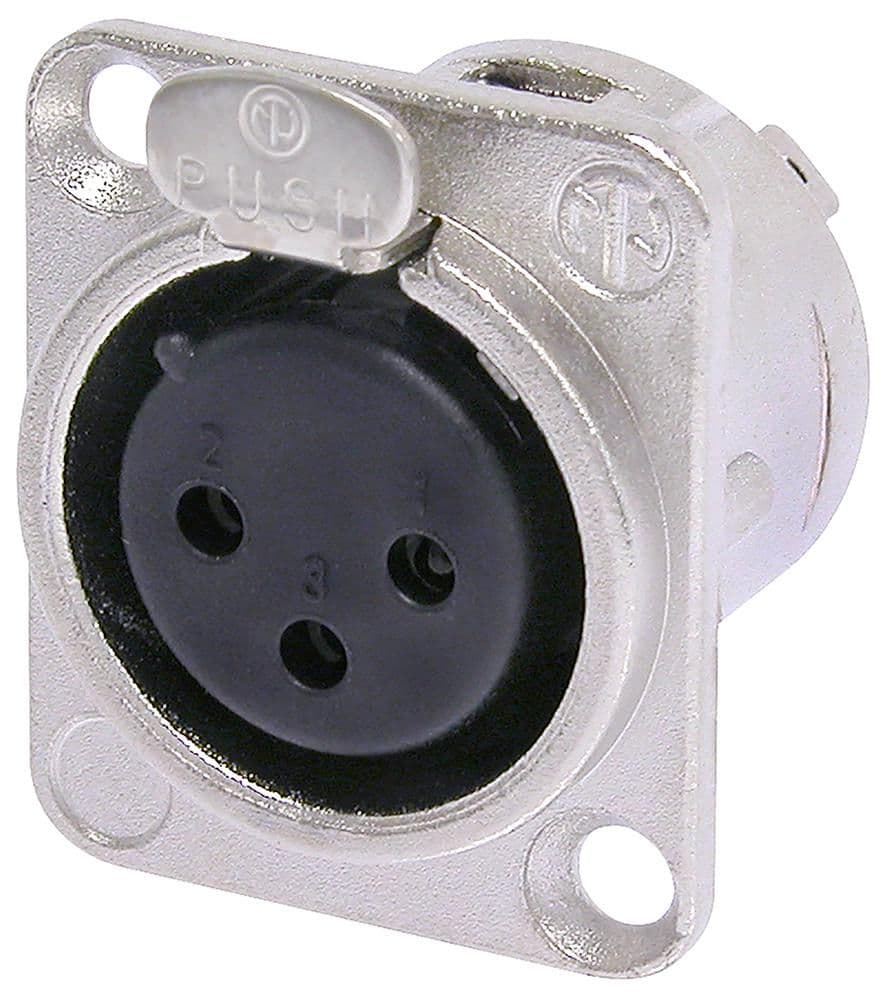

The Neutrik NC3FD-L-1 is a high quality 3 pin female XLR panel mounting socket designed for professional audio equipment, sound systems and custom audio installations.

Part of Neutrik's reliable DL series, this connector features a robust nickel-plated zinc die-cast metal housing, providing excellent durability and RF shielding to help minimise electromagnetic interference.

The socket features silver-plated brass contacts for reliable electrical connections, solder cup terminals for straightforward wiring and a secure latch locking mechanism to prevent accidental disconnection.

Its standardised 24mm D-size mounting format makes it ideal for installation in amplifier panels, mixing desks, audio patch panels, speaker connection plates and other professional audio equipment.

Key Features

• Genuine Neutrik NC3FD-L-1 female XLR panel socket
• 3 pin (3-pole) XLR connector
• Robust nickel-plated zinc die-cast metal housing
• Silver-plated brass contacts for reliable connectivity
• Solder cup terminals for secure cable connections
• Integrated latch locking mechanism
• Metal housing provides RF shielding
• Standard 24mm D-size panel mounting format
• Suitable for front or rear panel mounting
• IP40 protection rating
• 10A current rating per contact
• Designed for professional audio and AV applications

Technical Specifications

• Manufacturer: Neutrik
• Part Number: NC3FD-L-1
• Product Range: DL Series
• Connector Type: 3 pin female XLR socket
• Mounting: Panel / chassis mount
• Termination: Solder cups
• Housing Material: Nickel-plated zinc die-cast metal
• Contact Material: Silver-plated brass
• Contact Resistance: ≤5mΩ
• Insulation Resistance: Greater than 10GΩ
• Current Rating: 10A per contact
• Rated Voltage: Less than 50V
• Operating Temperature: -30°C to +80°C
• Protection Rating: IP40
• Flammability Rating: UL94HB

Typical Applications

Ideal for professional audio equipment, mixing consoles, amplifier panels, studio installations, audio wall plates, patch panels and custom-built audio connection boxes.

Please Note: This is a solder termination connector designed for panel mounting. Installation requires soldering and suitable panel fixing hardware.
