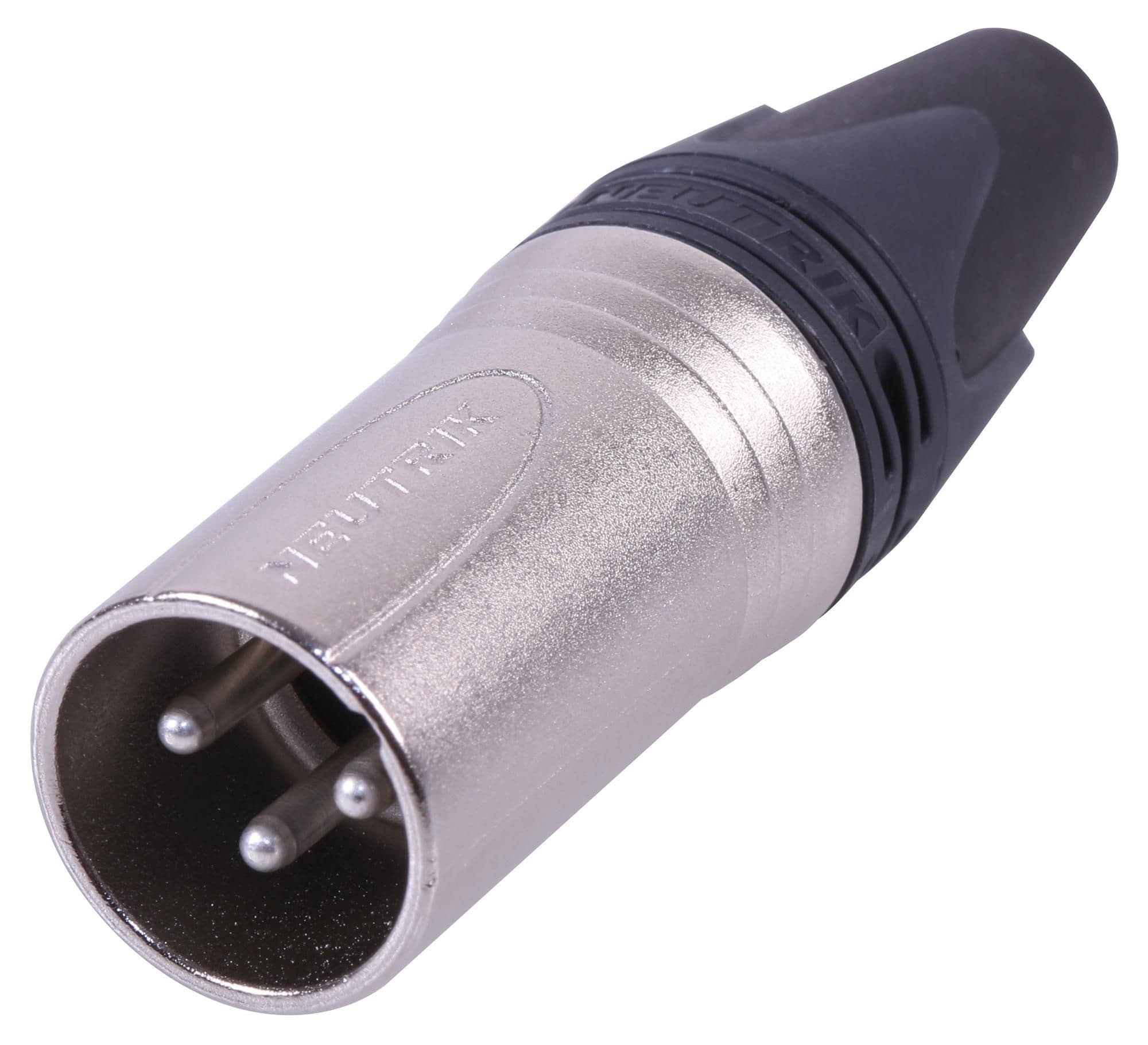

Neutrik NC3MXX 3 Pin Male XLR Cable Plug – XX Series

The Neutrik NC3MXX is a high-quality 3 pin male XLR cable connector from the professional XX Series. Designed for reliable audio connections, it features a rugged metal housing, secure locking mechanism and improved cable strain relief for long-lasting performance.
Ideal for making up or repairing microphone leads, balanced audio cables and professional sound equipment connections. The NC3MXX is compatible with Van Damme microphone cable and other suitable balanced audio cables, making it an excellent choice for studio, stage and installation use.
The improved chuck-type strain relief provides a secure grip on the cable, while the flexible polyurethane boot helps protect against damage caused by repeated bending. Its ergonomic design also makes the connector easy to handle and assemble.
The connector can also be fitted to suitable Van Damme instrument cable where an XLR connection is required, although wiring requirements will differ from standard balanced microphone cable.
Features

Genuine Neutrik NC3MXX 3 pin male XLR cable plug
Professional XX Series connector
Compatible with Van Damme microphone cable
Suitable for selected instrument cables with appropriate wiring
Ideal for making microphone leads and balanced audio cables
Rugged zinc diecast housing for durability
Improved locking recess for a secure connection
Chuck-type strain relief for excellent cable retention
Flexible polyurethane boot protects against cable bending
Ergonomic design for easy handling and assembly
Compatible with optional coloured identification rings and boots

Technical Specifications

Manufacturer: Neutrik
Part Number: NC3MXX
Connector Type: 3 Pin Male XLR
Series: XX
Housing Material: Zinc diecast
Cable Diameter: 3.5mm–8mm
Contact Resistance: ≤ 3 mΩ
Rated Voltage: Less than 50V
Operating Temperature: -30°C to +80°C
Protection Rating: IP40

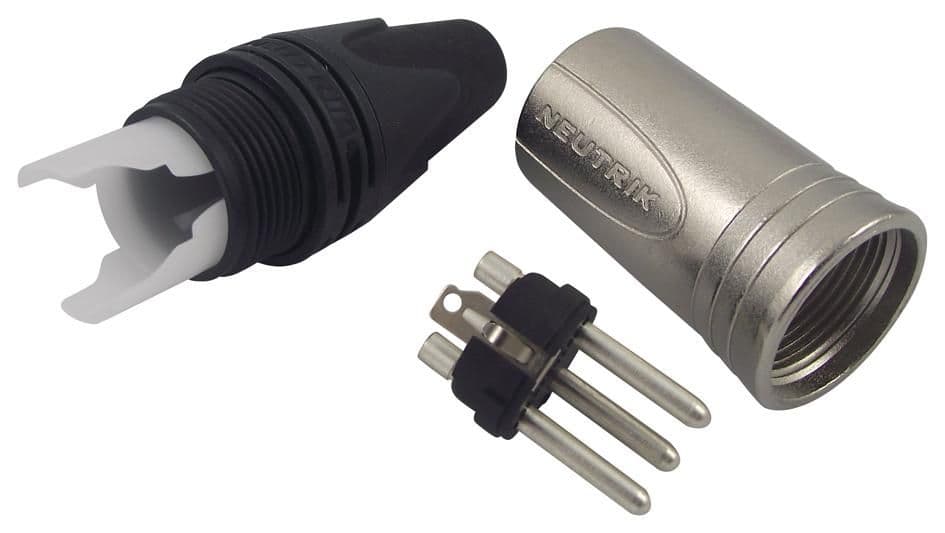

Please Note: This is a solder termination connector and requires assembly. Check cable diameter and wiring suitability before installation.
