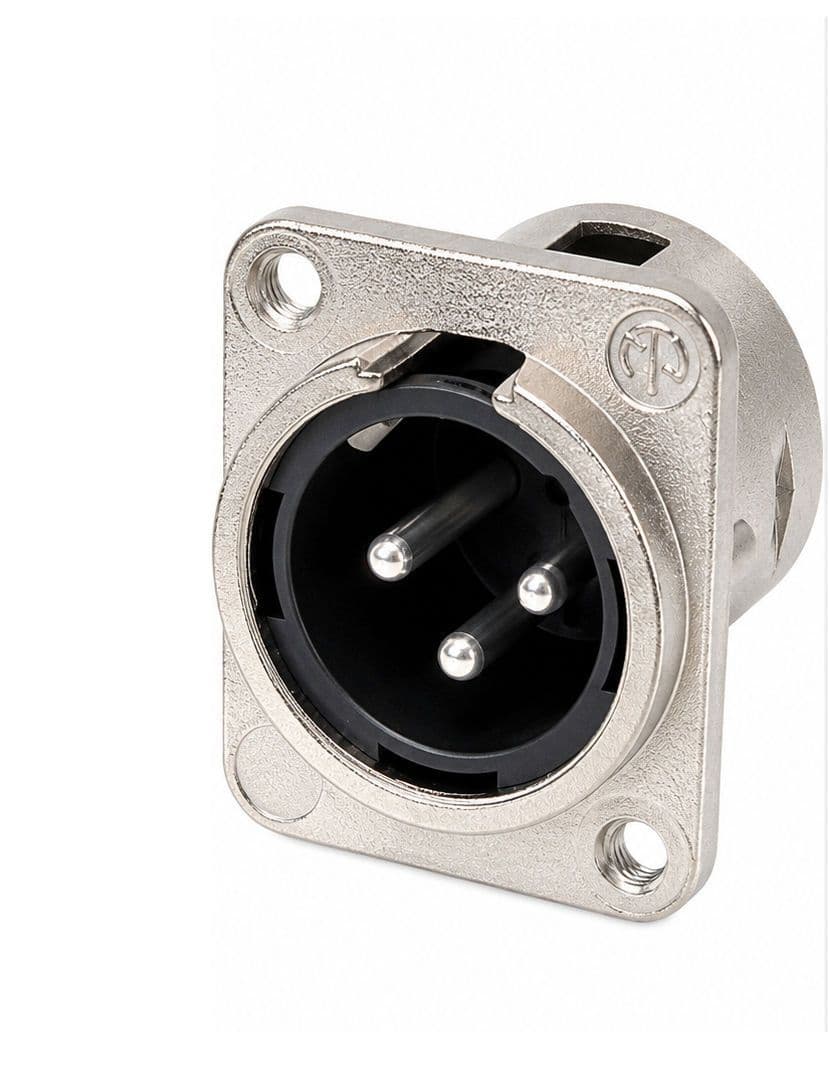

Neutrik NC3MDM3-L-1  - 3 Pin Male XLR Chassis Panel Connector

The Neutrik NC3MDM3-L-1 is a professional quality 3 pin male XLR chassis connector from the Neutrik DL Series, designed for mounting into equipment panels, audio enclosures and custom connection plates.

Featuring a rugged nickel plated metal housing with silver plated contacts, this connector provides reliable signal connections and RF shielding for professional audio applications. The standard D-size mounting profile allows installation into compatible panel cut outs, with threaded M3 fixing holes for secure mounting.

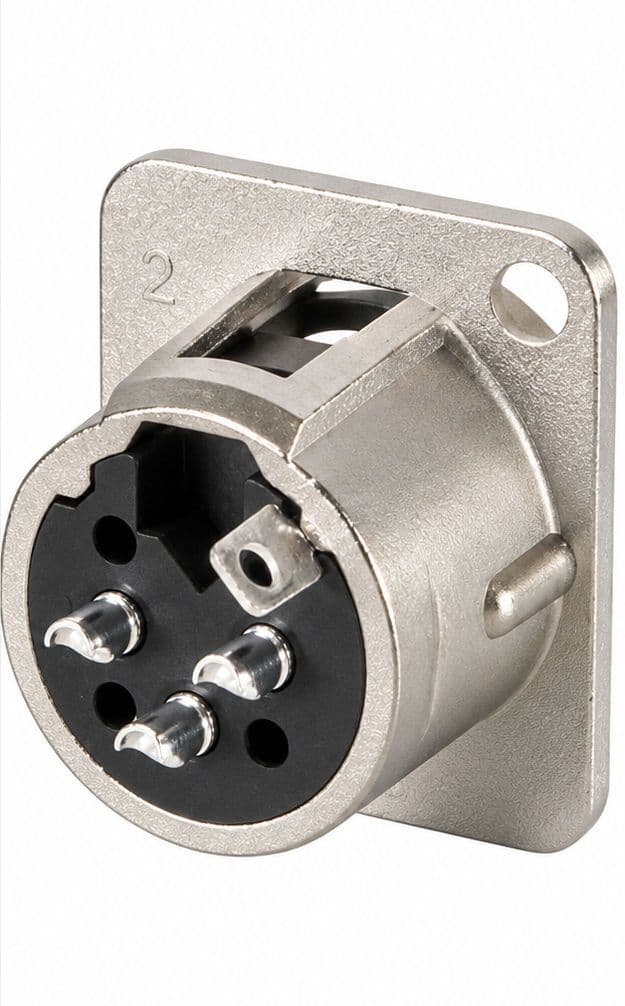

The connector features solder cup terminals for straightforward wiring, a latch locking mechanism for secure mating with compatible female XLR connectors, and a separate ground contact for improved electrical continuity between the connector shell and mounting panel.

Suitable for professional audio equipment, mixing desks, amplifiers, PA systems, stage boxes and custom audio installations.

Key Features

• Genuine Neutrik NC3MDM3-L-1 male XLR chassis connector
• 3 pin male XLR connection with silver-plated contacts
• Durable nickel-plated metal housing
• Standard D-size panel mounting profile
• Threaded M3 fixing holes for secure installation
• Suitable for front or rear panel mounting
• Metal shell provides RF shielding
• Separate ground contact for connector shell and front panel
• Solder cup terminals for cable wiring
• Latch locking system for secure XLR connections
• Ideal for audio equipment, stage boxes and custom connection panels

Technical Specifications

• Manufacturer: Neutrik
• Part Number: NC3MDM3-L-1
• Product Range: DL Series
• Connector Type: 3 Pin Male XLR
• Number of Contacts: 3
• Mounting Type: Panel / Chassis Mount
• Fixing Type: Threaded M3
• Housing Material: Metal, Nickel Plated
• Contact Plating: Silver
• Termination: Solder Cups
• Contact Resistance: ≤5mΩ
• Insulation Resistance: Greater than 10GΩ
• Current Rating: 7.5A per contact
• Voltage Rating: Less than 50V
• Protection Rating: IP40
• Flammability Rating: UL94HB
• Operating Temperature: -30°C to +80°C
• Standard: IEC 61076-2-103
