4K UHD HDMI Audio Extractor

This 4K UHD HDMI Audio Extractor allows you to separate the audio from an HDMI signal without affecting the video. It is ideal for TVs, games consoles, streaming devices, media players and set-top boxes that only provide audio through their HDMI connection.

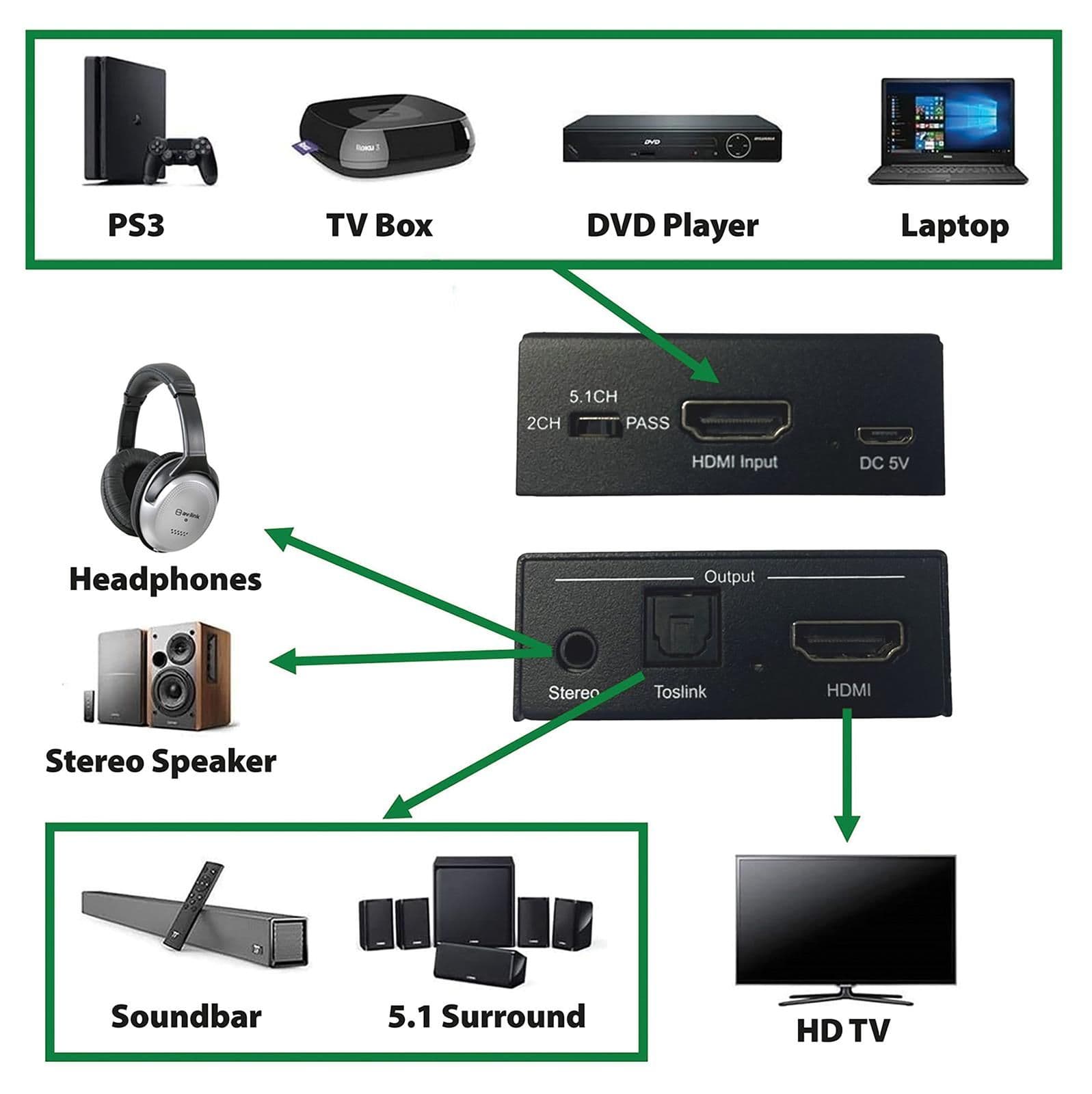

The HDMI source connects to the extractor, which then passes the video signal through to your TV or monitor via the HDMI output. At the same time, the audio is extracted and made available through both the optical (Toslink) and 3.5mm stereo outputs, allowing you to connect external speakers, amplifiers, soundbars or headphones.

This provides an easy solution when your display has limited audio connections or when you want to send the audio to a separate sound system while continuing to watch the video on your TV.

Supporting HDMI passthrough resolutions up to 4K UHD (3840 × 2160) at 30Hz, the extractor maintains excellent picture quality while delivering synchronised audio with no noticeable delay.

Features

• Separates audio from an HDMI signal
• HDMI video passthrough up to 4K UHD (3840 × 2160) @ 30Hz
• Optical (Toslink) and 3.5mm stereo audio outputs
• Ideal for connecting soundbars, amplifiers, speakers or headphones
• Instant audio synchronisation with no noticeable delay
• HDMI 1.4b and HDCP 1.4 compliant
• Compact plug-and-play design
• Powered via Micro USB (USB cable supplied)

Specifications

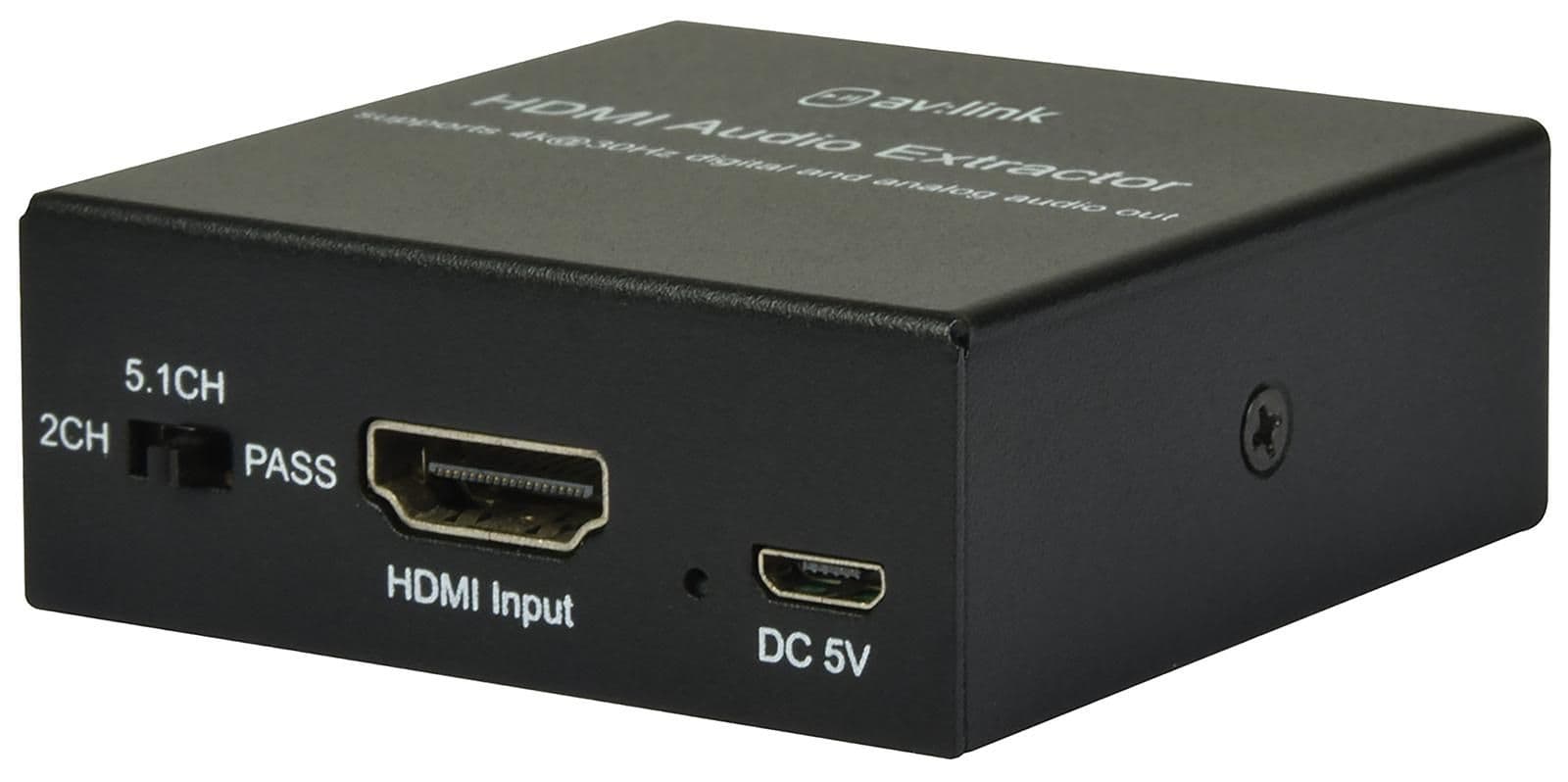

• HDMI Input: 1 × HDMI
• HDMI Output: 1 × HDMI (Passthrough)

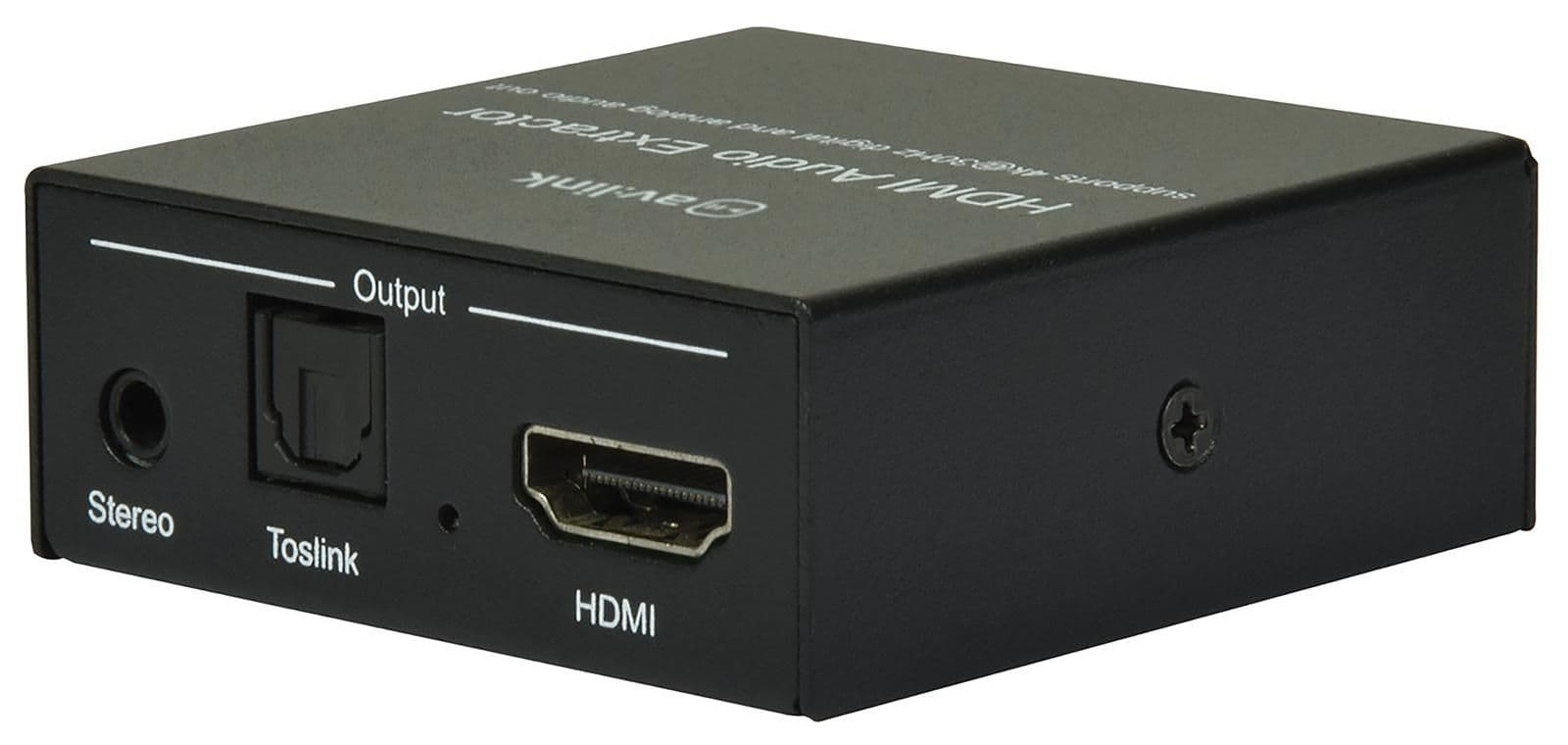

• Audio Outputs: 1 × Optical (Toslink), 1 × 3.5mm Stereo Jack
• Maximum HDMI Passthrough Resolution: 4K UHD (3840 × 2160) @ 30Hz
• HDMI Version: HDMI 1.4b
• HDCP Version: HDCP 1.4
• Power: Micro USB (USB cable included)
• Dimensions: 22 × 60 × 58mm

Contents
HDMI Audio Extractor
USB Power Lead
User Guide
UK Mains Power Adapter
