4x4 HDMI Matrix Switch – 4K 60Hz HDR HDMI Distribution System
This HDMI Matrix switch will allow users to control multiple HDMI devices, unlike a standard HDMI splitter or switch, a matrix lets you send any of four HDMI source devices to any of four displays independently. In simple terms, this means each TV or monitor can show a different source, or multiple displays can show the same source at the same time, giving you complete flexibility over how your equipment is connected.
Designed for home entertainment, commercial AV installations, meeting rooms, classrooms and digital signage, the matrix supports HDMI 2.0 with resolutions up to 4K Ultra HD at 60Hz, HDR10 and full 4:4:4 colour sampling, delivering crisp, detailed images and smooth video playback. Whether you're switching between media players, games consoles, PCs or satellite receivers, every connected display benefits from reliable, high-quality performance.

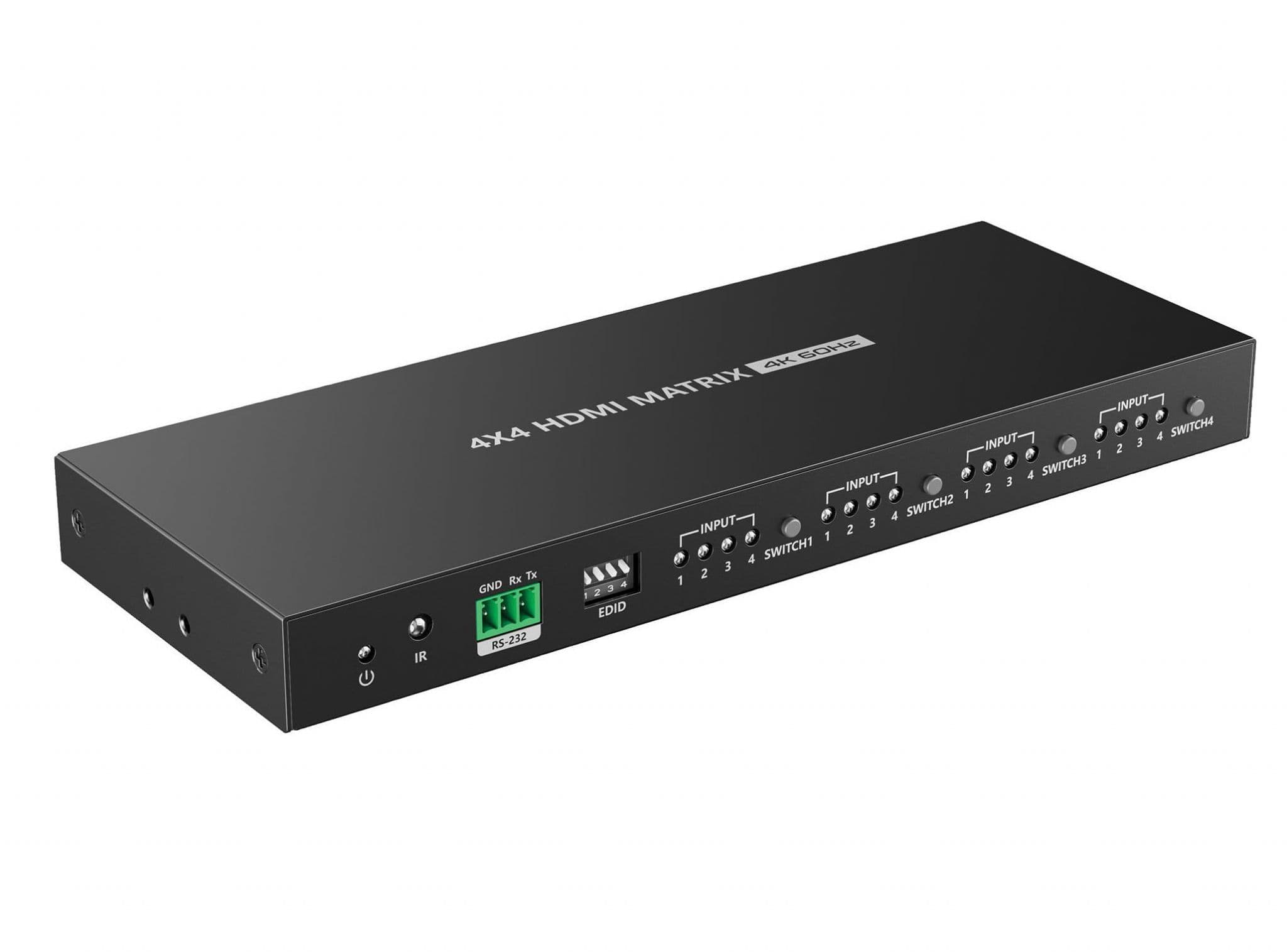

The matrix can be controlled using the supplied wireless IR remote, the front panel buttons or via RS232 commands for integration into professional control systems. Two of the four HDMI outputs also support automatic downscaling, making it easy to connect a mixture of 4K and Full HD displays without compatibility issues.
For added flexibility, EDID management is built in with 16 selectable settings using DIP switches, helping to ensure reliable communication between source devices and displays. The robust metal housing includes surge and ESD protection for dependable long-term operation.
Features
- Routes any of 4 HDMI sources to any of 4 HDMI displays independently
- Supports HDMI 2.0 resolutions up to 4K Ultra HD (3840 × 2160) at 60Hz
- HDR10 and YUV 4:4:4 support for outstanding picture quality
- 18Gb/s maximum bandwidth for high-performance video transmission
- Supports Dolby Digital Plus, Dolby Digital 7.1, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD and LPCM 7.1 audio formats
- Control via wireless IR remote, front panel buttons or RS232 commands
- Automatic downscaling available on two HDMI outputs
- 16-position EDID management with manual DIP switch selection
- HDMI 2.0 and HDCP 2.2 / HDCP 1.4 compliant
- Durable metal enclosure with lightning, surge and ESD protection

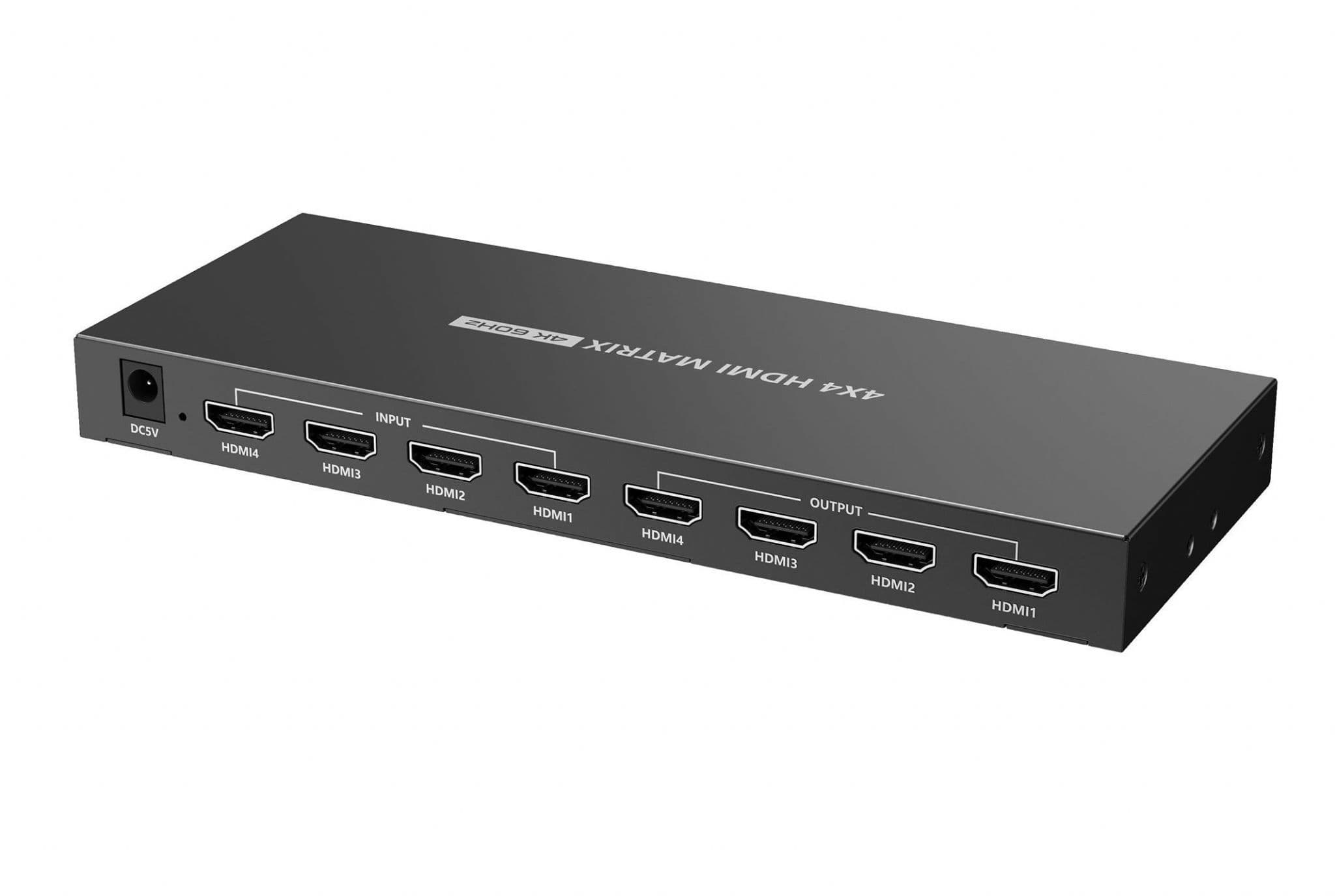

- Connections: 4 x HDMI inputs, 4 x HDMI outputs, RS232
- Compact dimensions: 21 x 210 x 80mm
Box Contents
- 4x4 HDMI Matrix Switch
- UK mains power adaptor
- Wireless IR remote control
- Terminal block
- Mounting kit
- User guide
Ideal for home cinemas, conference rooms, education, retail displays and any installation where multiple HDMI devices need to be shared between multiple screens.
