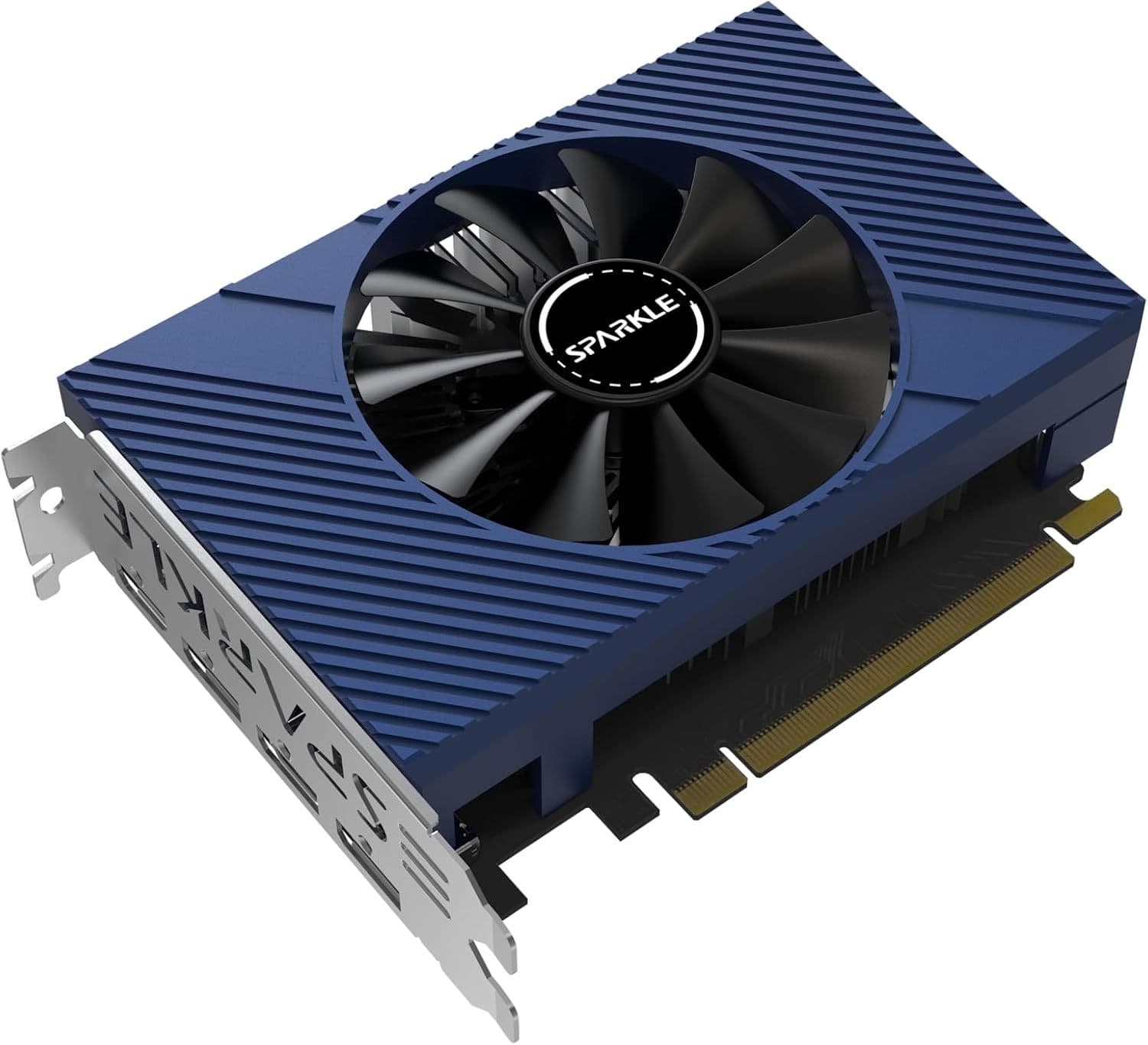

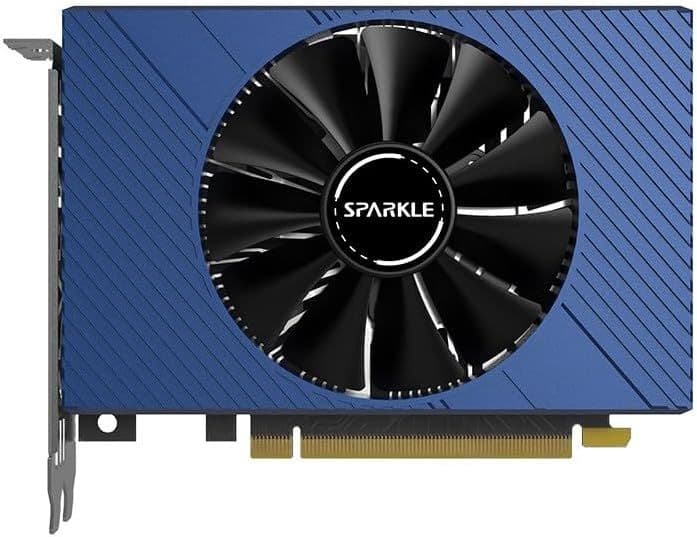

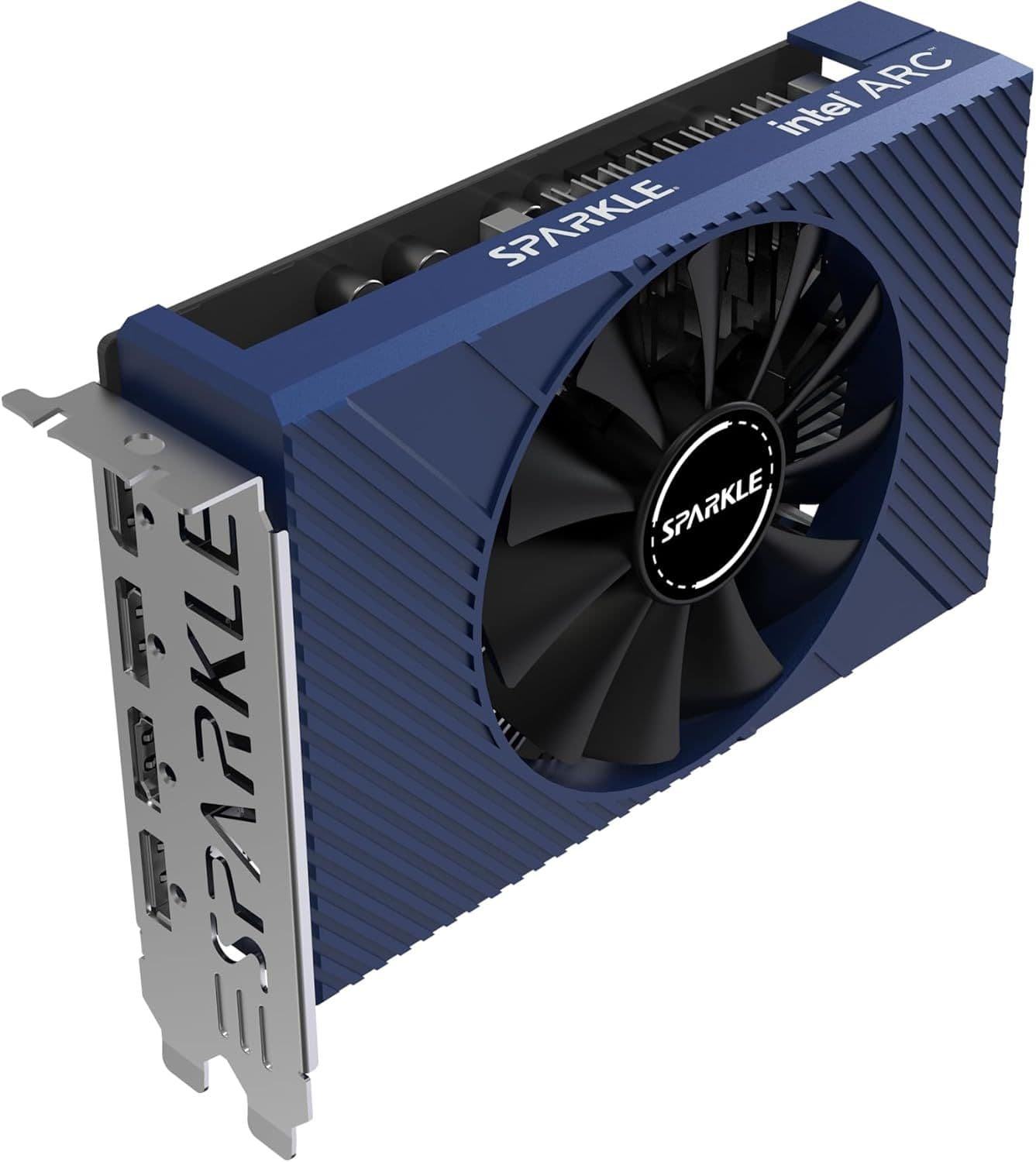

Sparkle Intel Arc A380 ELF 6GB GDDR6 Compact Graphics Card

Bring modern performance to small form factor systems with the Sparkle Intel Arc A380 ELF. Designed around Intel’s Arc architecture, this compact dual-slot card delivers smooth gaming, fluid streaming, and powerful media acceleration in a space-saving design that fits where larger GPUs can’t.

Equipped with 6GB of fast GDDR6 memory and a 2000MHz boost clock, the A380 ELF handles today’s most popular esports and mainstream titles with ease, while also offering advanced features such as real-time ray tracing, XeSS AI upscaling, and full AV1 hardware encoding/decoding for next-gen video playback and content creation.

Connectivity is versatile, with three DisplayPort outputs and one HDMI port, supporting multiple high-resolution displays for gaming, productivity, or home theatre use. With a low 75W power draw, the card runs entirely off the PCIe slot, no extra power cables needed making it an excellent upgrade option for compact or prebuilt PCs.

Compact and Ready
 Single-fan with duo-slot compact design, ELF Series carried out the pure power of Intel Arc Series and brings the new balance of performance level and price point.

Finished with Sparkle’s smart cooling design, the A380 ELF balances performance and efficiency, keeping temperatures under control while maintaining reliable operation.

Key Features:

• Intel Arc A380 GPU with 6GB GDDR6 memory
• Boost clock up to 2000MHz for responsive performance
• Compact dual-slot design – perfect for small PC builds
• No external power connector required (75W TDP)

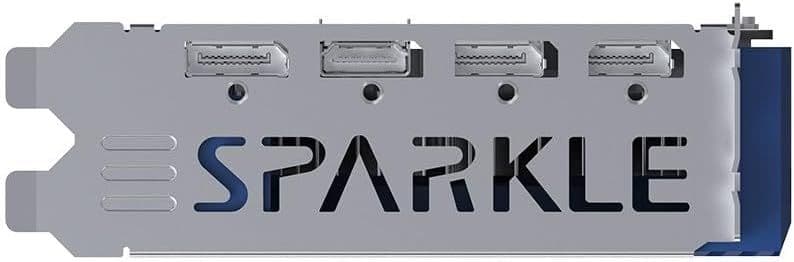

• 3 × DisplayPort + 1 × HDMI outputs for multi-monitor setups
• Supports ray tracing, Intel XeSS upscaling & AV1 video acceleration
• Chipset Manufacturer: Intel
• Interface: PCI Express 4.0
• Graphics Chipset: Intel Arc A380
• Memory Size: 6GB
• Memory Type: DDR6
• Memory Interface: 96-bit
• Engine Clock: Boost Clock: 2000MHz
• Memory Clock: 15.5 Gbps
• Intel XMX Engines: 128
• Outputs: 1 x HDMI 2.0, 3 x DisplayPort 2.0
• DirectX Support: DirectX 12 Ultimate
• Max Display Support: 4
• Cooling: Single Fan
• PSU Requirements: 450W or greater recommended
• Dimensions: Height: 100 mm, Length: 152.6 mm
• Slot Size: 2 Slot
• Package Type: Retail


Ray Tracing
Variable Rate Shading (VSR)
Xe-Core: 8
Ray Tracing Units: 8
Vulkan 1.3
Intel XMX Engines: 128
OpenGL 4.6
Xe Vector Engines: 128
OpenCL 3.0
Adaptive Sync
Graphics Memory Bandwidth: 186 GB/s
VP9 Bistream & Decoding
Intel Deep Link Hyper Compute
Intel Deep Link Hyper Encode
Intel Deep Link Stream Assist
