Hybrid 6 Output Wideband LNB – SkyQ / HD

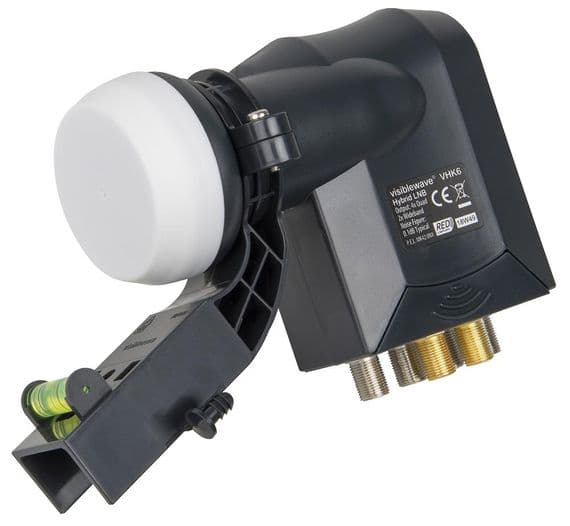

This Hybrid Wideband LNB has 6 outputs and supports both SkyQ and SKY HD, Freesat, It has 2 wideband outputs which can be used for SKYQ and 4 legacy outputs for Sky HD, Freesat, Supplied with Mk4 dish bracket

Outputs for Sky Q and Sky HD reception (2x wideband, 4x Quad)
Low noise,
high stability and isolation
Supplied with Mk. 4 dish bracket

Wideband Technical Speci¬fication

Input Frequency 10.7 ~ 12.75GHz
Output Frequency Vertical: 290 ~ 2340MHz Horizontal: 290 ~ 2340MHz
L.O. Frequencies 10.41GHz
L.O. Stability +/-0.5MHz (max) @ Room Temp. +/-1 MHz (max) @ -40°C ~ +60°C L.O. Phase Noise -50dBc/Hz @ 1kHz (max.) -75dBc/Hz @ 10kHz (max.) -100dBc/Hz @ 100kHz (max.)
Noise Figure 0.1dB (typ.)
Conversion Gain 50dB (min) / 60dB (max)

Gain Flatness Over 26MHz +/-0.5dB (typ.)
Gain Variation 7dB (max.) @ full band
Cross Polar Isolation 25dB (typ.)
Image Rejection 40dB (min)
Current Consumption 0.85W (max.) (70mA @ +12VDC)
Power Voltage 9 - 19VDC
Connector Type 75Ω female F-connector
Output Spurious <-60dBm
Operating Temp. -40’C ~ +60’C
RED Compliance EN 303 372-1

Legacy Technical Speci¬fication

Input Frequency low band: 10.7 ~ 11.7GHz high band: 11.7 ~ 12.75GHz
Feedhorn - Linear Optimised for offset dish
Output Frequency Output 1, 2, 3, 4 low band: 950 ~ 1950 MHz high band: 1100 ~ 2150MHz
Output 1,2,3,4 VSWR (950 - 2150 MHz) Ratio 2.0:1 (typ.), 2.5:1 (max.)
L.O. Frequencies 9.75 / 10.6 GHz
L.O. Stability 0.5 ~ 1.0 MHz
L.O. Phase Noise -55dBc/Hz @ 1kHz (max.) -75dBc/Hz @ 10kHz (max.) -90dBc/Hz @ 100kHz (max.)
Operating Temperature -40ºC ~ +60ºC
Conversion Gain 56 ~ 63dB @ 25ºC 54 ~ 60dB @ -40ºC ~ 60ºC

Gain Flatness Over Full Band 3dB P-P (typ.), 5dB P-P (typ.)
Gain Flatness Over 26MHz +/- 0.5dB P-P (typ.)
Gain Flatness Over 300MHz +/- 4dB P-P (typ.)
1.7GHz -50dB (typ.) -47dB (max.)
Noise Figure 0.3dB (typ.), 1.0dB (max.)
Cross Polar Isolation 18dB (min.), 20dB (typ.)
Image Rejection 37dB (min), 40dB (typ.)
Current Consumption 120mA (typ.), 140mA (max.)
Operating Voltage & Band Switching Vertical 11.5 - 14.5VDC, Horizontal 15.5 - 19VDC, Low-Band 0KHz, High-Band 18 - 26KHz
Connector Type 75Ω female F-connector
RED Compliance EN 303 372-1
