Product Description

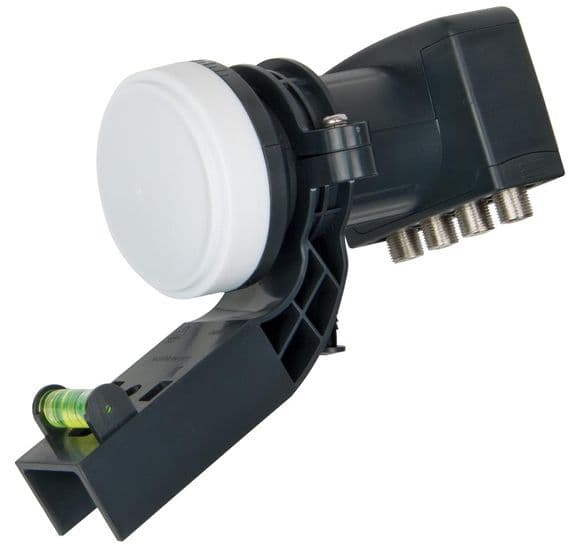

Quad LNB for Freesat and Sky HD

This quad LNB is suitable for freesat and Sky Mk4 satellite dishes, It has 4 outputs and can be used with freesat receivers or sky HD boxes, supplied with sky compatible bracket and built in spirit level


Quad LNB for Freesat and Sky Mk.4 satellite dishes
4x Outputs for use with Sky HD digiboxes
Built-in spirit level indicator
Supplied with Sky-compatible bracket
Input freq.: 10.7-12.75GHz


Inmput frequency Low Band: 10.7~11.7GHz, High Band: 11.7~12.75GHz
Feedhorn - Linear Optimised for offset dish
Output Frequency Low Band: 950~1950MHz , High Band: 1100~2150MHz
Output VSWR (950 - 2150MHz) Ratio 2.0:1 (typ.), 2.5:1 (max.)
L.O. Frequencies 9.75GHz (LB) / 10.6GHz (HB)
L.O. Stability 0.5-1.0MHz @ 25°C, 0.5-1.0MHz @ -40~70°C
L.O. Phase Noise (25°C ) @ 1kHz: -65dBc/Hz (typ.), -55dBc/Hz (max.) @ 10kHz: -83dBc/Hz (typ.), -75dBc/Hz (max.) @ 100kHz: -95dBc/Hz (typ.), -90dBc/Hz (max.)
Conversion Gain 55~63dB @ 25ºC, 53~60dB @ -40ºC~70ºC
Gain Flatness Over Full Band 3dB P-P (typ.), 5dB P-P (tmax.)
Gain Flatness Over 26MHz ± 0.5dB P-P (typ.)± 0.75dB P-P (max.)
Gain Flatness Over 300MHz ± 4dB P-P (typ.), ± 5.5dB P-P (max.)
Spurious Gain @ 1.7GHz -50dB (typ.) -47dB (max.)
Noise Figure 1dB (typ.), 1.2dB (max.)
Cross Polar Isolation 18dB (min.)20dB (typ.)
Image Rejection 37dB (min), 40dB (typ.)
Current Consumption 120mA (typ.), 140mA(max.) 12V
Connector Type 75Ω female F-connector
Operating Temp. -40ºC ~ +70ºC RED
Compliance EN 303 372-1 T

***Not Compatible with SkyQ




Specifications

Brand
Cables 4 ALL
Condition
New
Product Code
CA-VK4L
Weight
0.12kg
