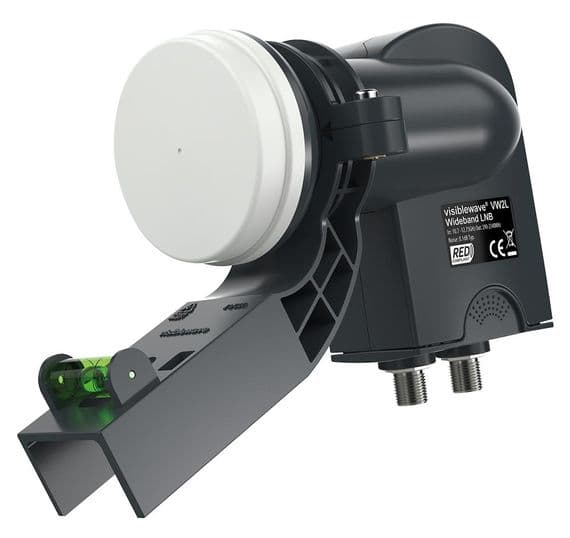

Twin Wideband LNB Suitable For SkyQ, 4k Freesat Boxes

This twin LNB is A wideband LNB suitable for SkyQ and 4k Freesat boxes, it's supplied with a bracket suitable for Sky Mk4 satellite dishes, It has 2 outputs and has a built in spirit level

•    Twin LNB for SkyQ and Sky Mk.4 satellite dishes
•    Suitable for SkyQ and Freesat 4k boxes
•    Wideband
•    2x Outputs for use with Sky HD digiboxes
•    Built-in spirit level indicator
•    Supplied with Mk. 4, Sky compatible dish bracket

Technical Specification:

Input Frequency 10.7 ~ 12.75 GHz
Output Frequency: Vertical: 290 ~ 2340 MHz, Horizontal: 290 ~ 2340 MHz
L.O. Frequencies 10.41 GHz
L.O. Stability +/-0.5 MHz (max) @ Room Temp. +/-1 MHz (max) @ -40°C ~ +60°C
L.O. Phase Noise: -50dBc/Hz @ 1kHz (max.), -75dBc/Hz @ 10kHz (max.), -100dBc/Hz @ 100kHz (max.)
Noise Figure 0.1 dB (typ.)
Conversion Gain 50 dB (min) / 60 dB (max)
Gain Flatness Over 26MHz +/-0.5dB (typ.)
Gain Variation 7dB (max.) @ full band
Cross Polar Isolation 25 dB (typ.)
Image Rejection 40 dB (min)
Current Consumption 0.85W (max.) (70mA @ +12V DC)
Power Voltage 9 - 19VDC
Connector Type 75Ω female F-connector
Output Spurious <-60dBm
Operating Temp. -40’C ~ +60’C
RED Compliance EN 303 372-1
