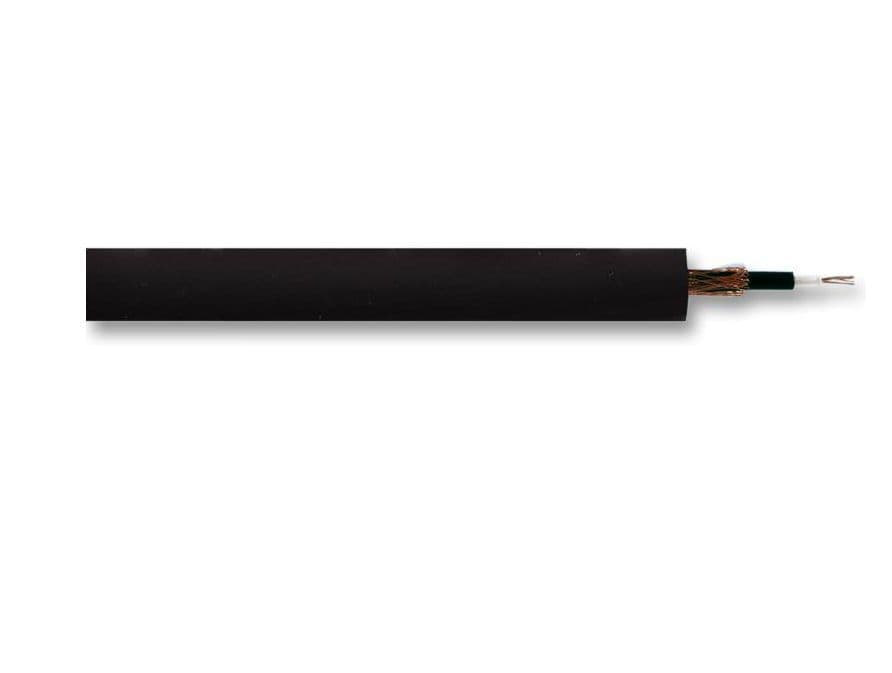

Instrument Cable - Van Damme PRO Grade Classic XKE Cable

Various Lengths Available

Van Damme Pro Grade Classic XKE Instrument Cable is a relatively low capacitance unbalanced audio cable for use with guitars, keyboards and other unbalanced output devices. Its tight construction and dual screens of conductive thermoplastic and close lapped copper ensure noise free handling and excellent noise rejection making this cable ideal for on stage use

Applications

• Guitar cables
• Keyboard and sound module cables
• Hi-Fi interconnects

Application Notes

• Low noise and high flexibility for on stage use
• Multiple colours for application or length colour coding (Please Contact For Other Colours)
• Dual thermoplastic/lapped copper screens for excellent noise rejection
• Combination of silver plated and plain ultra-pure oxygen free copper conductors for unsurpassed sound quality
• Length: Various Length Available (5m, 10, 15m, 20m, 25m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m) - CUT FROM REEL

Mechanical Specification

• Conductors 3 x 0.20 mm silver plated ultra-pure oxygen-free copper
• 4 x 0.20 mm bare ultra-pure oxygen-free copper
• Conductor size 7 x 0.20 mm, 0.22 mm2 , AWG 24/7
• Insulation Foamed polyethylene
• Screen 1 0.40 mm conductive thermoplastic
• Screen 2 80 x 0.10 mm close lap spiral bare oxygen-free copper
• Jacket material Flexible PVC/Neoprene composite
• Overall diameter 6.00 ± 0.15 mm
• Bend radius 10 x overall diameter
• Operating temperature -20 to +70 ⁰C

Electrical Specification

• Resistance Conductor < 90 Ohm/km
• Insulation > 5000 MOhm/km
• Capacitance Core to screen 90 pF/m
