AOC Cable (Active Optical cable)
USB C into HDMI (Supports 4k @ 60Hz)
This 20m USB C to HDMI Cable is an active optical cable made up of optical fibres replacing the standard copper, The use of fibre optical cores allows the cable to be thinner and lighter ensuring barriers of cable length is no longer a problem, Copper cores still remain to carry power along the cable.
Cable is compatible with 4k resolutions @ 60Hz
USB3.1 brings many improvements to the previous standard USB3.0. The most noticeable is the new Type-C connector which is much smaller than the previous standard connectors, it is also reversible.
Another feature is called “Alternative Mode”. This allows the USB to carry different types of signal. Our cable adapters will use this mode and convert the DP Alt mode signal in to a HDMI signal.
• The use of fibre optical cores allows the cable to be thinner and lighter
• The barriers of cable length is no longer a problem
• By using fibre optical cores, EMC interference from power cables and lighting is no longer an issue. The cables also produce much less EMC themselves
• No signal loss over long distances
• No extenders, boosters or runs of CAT5e needed. These simply connect to your host and device like a standard cable
• Our AOC comes in frustration free packaging
Please Note: This cable must be connected with the Source connector connected to the device & Display connector connected to the display.
The USB3C port must support DP ATL Mode

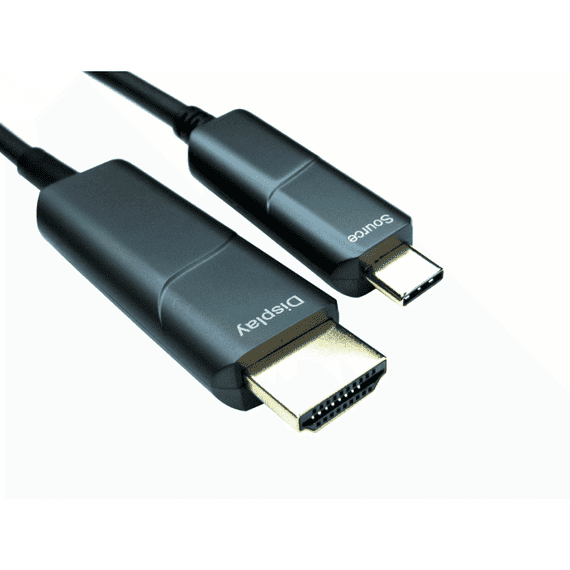

USB 3.1 C Male to HDMI Male
Supports 18Gbps
Supports Resolutions up to 4K@60Hz
Supports EDID/CEC/HEAC
Requires a USB C port with DP ALT Mode Support
Metal Connectors
4 Fibre cores
Cable Outer Diameter 4.5mm
Cable Bend Radius 9mm
CPR rated
Frustration free packaging
