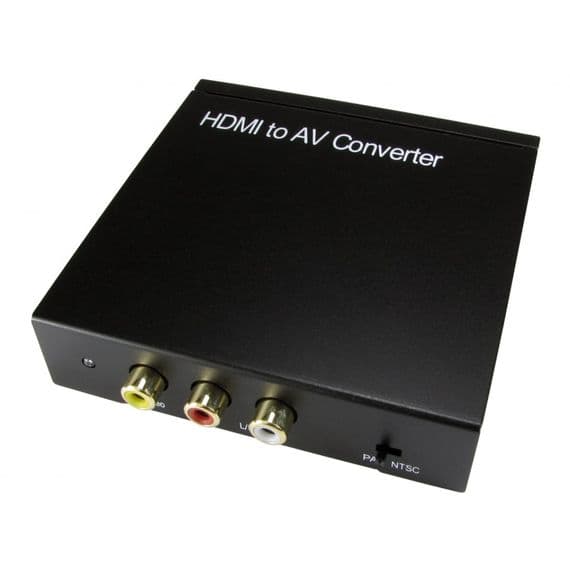

HDMI to RCA Audio and Video Converter

The HDMI to Composite converter converts HDMI signal in to composite video (Yellow Jack plug) with stereo audio (Red and White jack plugs), this allows you to use modern equipment with older equipment that does not have HDMI input. In some cases extra power will be needed via the usb port which is provided by connecting the included USB cable.
Ideal for connecting HD equipment for example a games console to an older TV....

Composite video is the yellow RCA Video jack found on most older equipment, The stereo audio jacks on equipment can sometimes be colour coded red / black / white.

Converts HDMI to composite Video and RCA Audio
Digital to Analogue Converter Chipset(DAC)
Supports HDMI input resolutions up to 1080p @ 60HZ
Supports NTSC and PAL output
Input: 1 x HDMI
Output: 1 x Composite and L/R RCA audio
Supports analogue composite video output up to 480i (NTSC) or 576i (PAL)
HDCP Compatible
Power: DC5V(USB cable supplied

Contents
HDMI to Composite converter
USB cable
User Manual
